Cat5e vs Cat6 vs Cat6a vs Cat7: Which Ethernet Cable and Connectors Do You Need?
Share
If you are wiring a home office, patching a small server rack, or just replacing a cracked cable, the category printed on the jacket decides how fast your network can go — and how much headroom you have later. Cat5e, Cat6, Cat6a and Cat7 are not marketing labels; each one is a different specification for bandwidth, crosstalk and shielding. Here is what actually separates them, and how to pick the right cable and the right connector for your run.
The short answer: category comparison
| Category | Max speed | Typical distance | Bandwidth | Shielding | Good fit for |
|---|---|---|---|---|---|
| Cat5e | 1 Gbps | 100 m | 100 MHz | UTP / FTP | Homes, small offices, plain gigabit |
| Cat6 | 10 Gbps (short runs) | 55 m for 10G, 100 m for 1G | 250 MHz | UTP / FTP | Most new installs |
| Cat6a | 10 Gbps | 100 m | 500 MHz | U/FTP, S/FTP | 10G backbones, busy offices, PoE |
| Cat7 | 10 Gbps | 100 m | 600 MHz | S/FTP | Shielded runs near motors, radios and other noise |
Cat5e: still the workhorse for home gigabit
Cat5e runs 1 Gbps to 100 metres and is the cable most homes already have inside the walls. If your internet plan tops out at 1 Gbps and your runs are short, Cat5e is not the bottleneck — your router is. The practical rule: if you only need gigabit, Cat5e is enough, and spending more buys you future-proofing rather than current speed.
When you are terminating Cat5e, a pass-through plug makes the job far less fiddly because the conductors exit the front and you can verify the wire order before crimping. Our XLEP XL-320 Cat5e pass-through plug, 100 pack lets you check the colour sequence by eye. If you prefer a classic closed-end design, the XLEP XL303 RJ45 modular plug for Cat5e and Cat6 UTP cable covers both solid and stranded UTP.
Cat6: the sensible default for a new install
Cat6 doubles the bandwidth to 250 MHz and can carry 10 Gbps over short runs, usually up to around 55 metres. For a new build where the walls are open anyway, Cat6 is the category most installers reach for: it handles today's gigabit with margin and gives you a path to 10G within a single room or rack.
Cat6 is fussier about termination than Cat5e, so the parts you put on the ends matter more. A sleeved, gold-plated plug holds its contact geometry better over repeated mating, and a tool-free keystone jack removes the punch-down step entirely for wall outlets. Two good starting points: the XLEP XL-560B Cat6 pass-through plug, and the XLEP XL-2056 Cat6 shielded toolless keystone jack for outlets and patch panels.
Cat6a: when 10G needs the full 100 metres
Cat6a is the honest answer to "I need 10 Gbps everywhere." It raises the bandwidth to 500 MHz and keeps 10 Gbps over the full 100-metre channel, which is why it shows up in offices, classrooms and anything running Power over Ethernet to many devices. Cat6a is also where shielding becomes normal rather than optional, because higher frequencies pick up more interference.
If you are extending or joining Cat6a runs, keep the shielding continuous end to end. A shielded Cat6a/Cat6 RJ45 inline coupler joins two patch cables without breaking the screen, and the shielded Cat6a inline coupler, 5 pack does the same job in a smaller five-pack for short extensions behind a desk or rack.
Cat7: shielded, specialized, and often misunderstood
Cat7 pushes bandwidth to 600 MHz and is always fully shielded, which makes it a good choice in electrically noisy environments — workshops, industrial cabinets, anywhere near motors or radio equipment. What it is not is a shortcut to faster internet. Cat7 will not increase your speed beyond what Cat6a already delivers in a normal home; its benefit is noise immunity, not headline speed.
Because the shield has to be bonded at the connector, Cat7 only performs if the plugs and jacks are shielded too. Our XLEP XL-523 Cat7 shielded RJ45 plug is built for this, and the Cat7 FTP shielded tool-free plug is a tool-free option if you would rather not crimp at all. For shorter shielded runs, the FTP Cat5e/Cat6 shielded RJ45 patch cord keeps the screen intact from end to end.
Do not forget the connector on the end
A cable is only as good as its termination. Three details decide whether your install actually holds up:

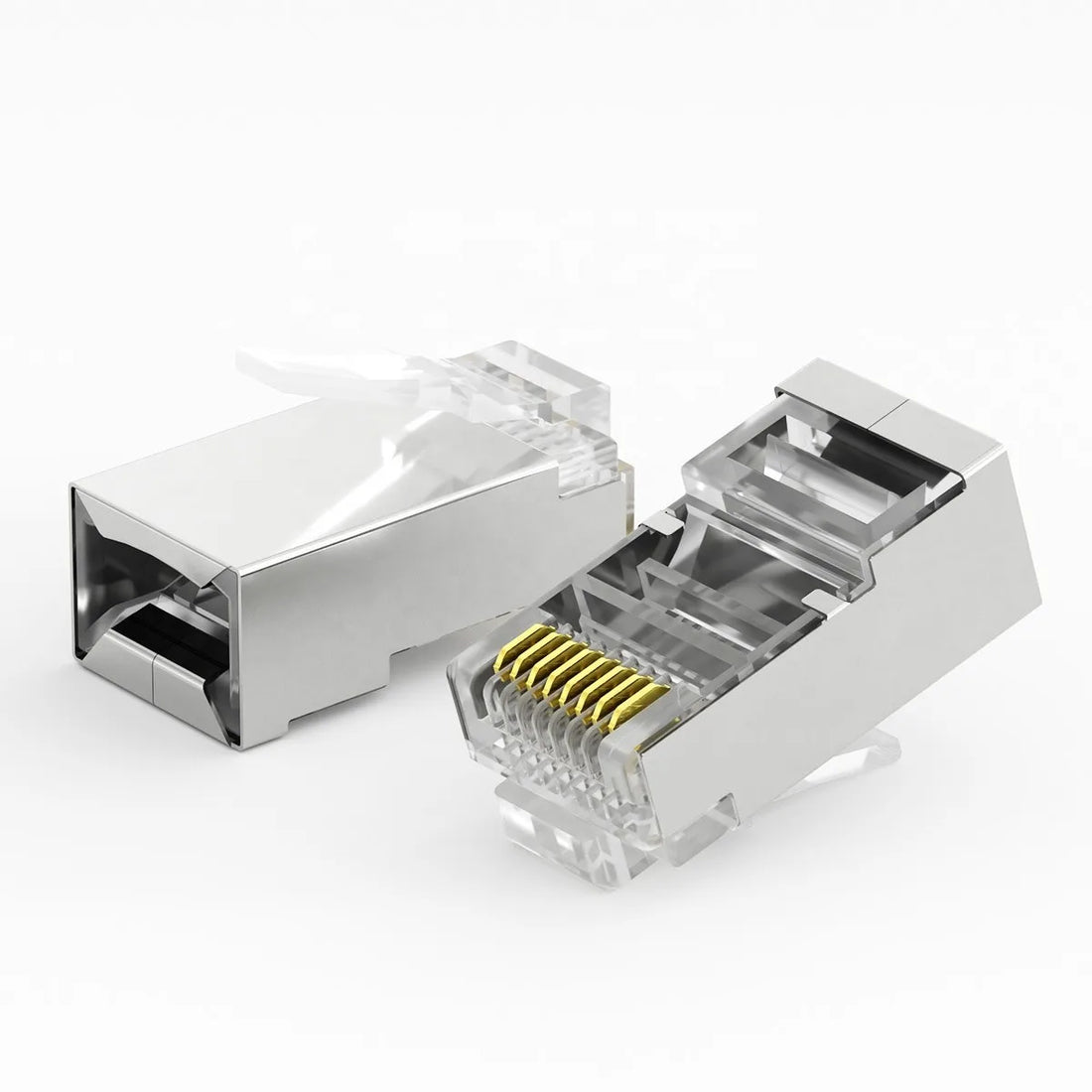

- Shielding has to match. Putting an unshielded plug on a shielded cable breaks the screen and can make interference worse. Our XLEP XL-504 shielded RJ45 plug is a shielded option for Cat5e and Cat6 runs.
- Gold plating is about longevity. Plated contacts resist oxidation, which matters in humid rooms and on ports that get plugged and unplugged often.
- Strain relief protects the crimp. A transparent PVC RJ45 strain relief boot stops the cable flexing right where the conductors meet the contacts — the most common failure point in a patch lead.
The tools that make the job repeatable
Hand crimping hundreds of plugs with the wrong tool is how installers end up with a box of failed terminations. Three tools cover almost everything:
- The XLEP 8451 RJ45 crimp tool kit bundles a crimper, cable tester, stripper, plugs and boots — a complete kit for a first wiring project.
- The XLEP XL841 crimping tool is a straightforward crimper for RJ11, RJ12 and RJ45 work.
- The XLEP XL-1003 ratcheting crimp tool uses a ratchet mechanism, so the die closes fully every time and your crimps are consistent rather than strength-dependent.
What should you actually buy?
Match the cable to the job and stop overthinking it:
- Home, gigabit internet, short runs: Cat5e with quality pass-through plugs.
- New build or a room you may upgrade: Cat6, terminated with shielded or gold-plated connectors and keystone jacks.
- Office, 10G, or lots of PoE devices: Cat6a, kept shielded end to end.
- Noisy electrical environment: Cat7, with shielded plugs and jacks to match.
Whichever category you choose, buy the connector and the tool at the same time — a mismatched plug is the single most common reason a good cable underperforms. Browse the full XLEP range in our store, and remember that orders over $35 ship free.
