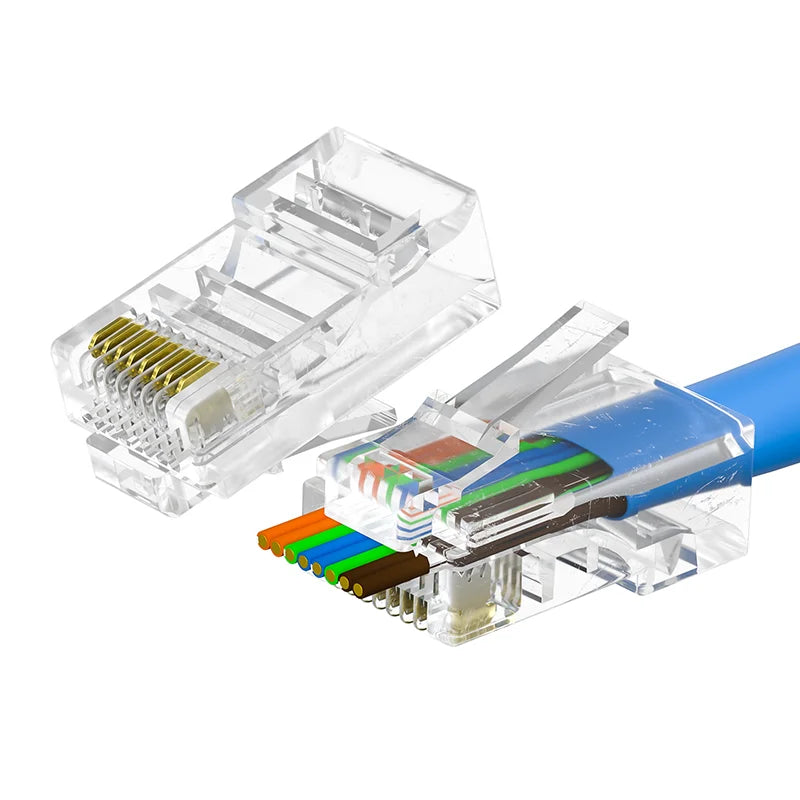

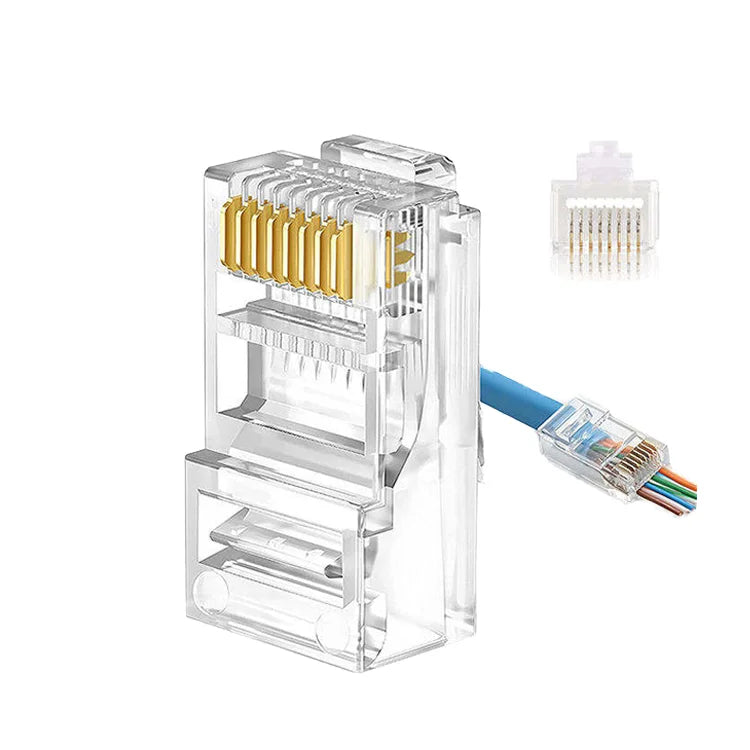

XLEP XL-320 RJ45 Pass-Through Plugs, Cat5e 8P8C UTP, 100 Pack

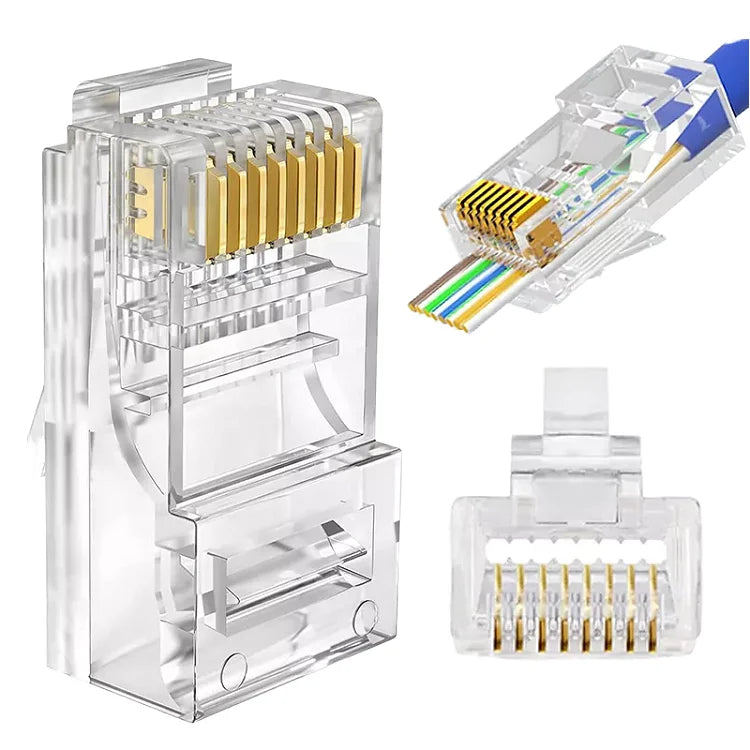

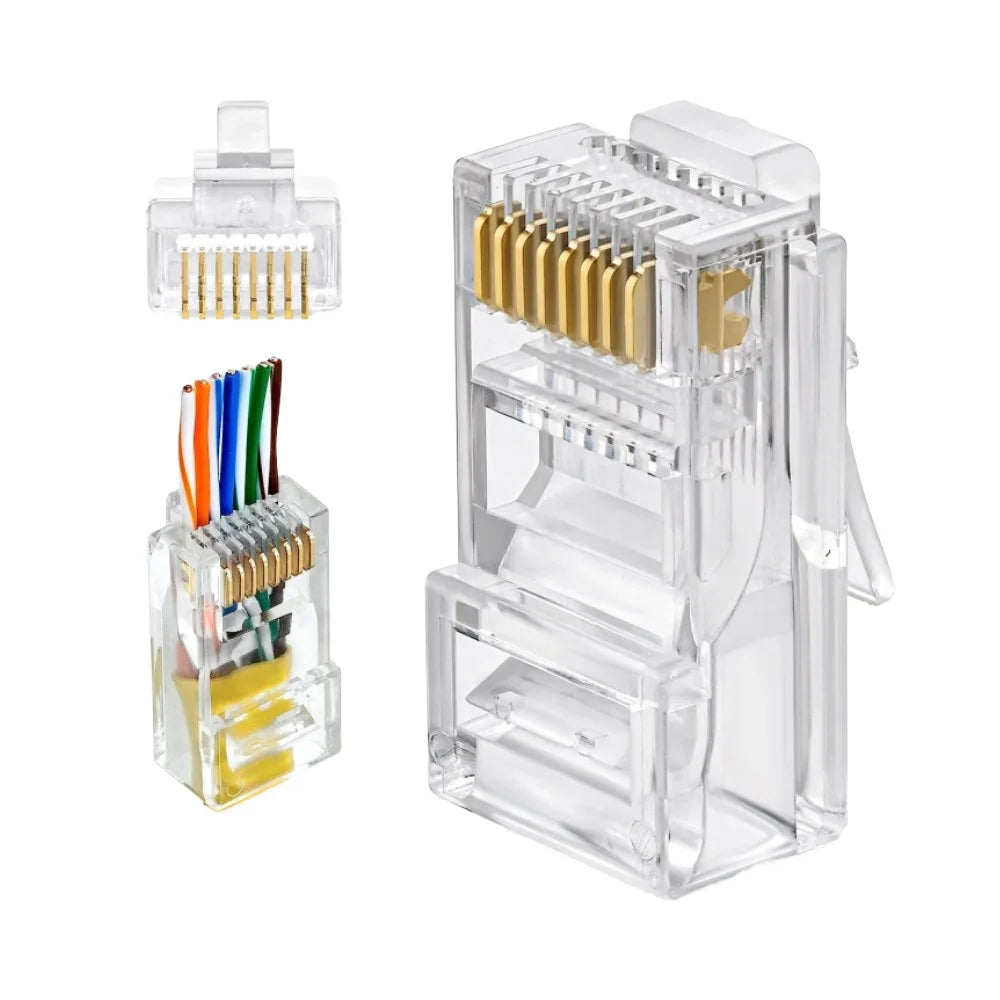

The XLEP XL-320 is an EZ pass-through RJ45 modular plug for Cat5e 8P8C cable ends. The open design makes it easy to thread the wire through the connector, and this pack of 100 keeps your workbench stocked.

Key Features

• Pass-through body allows the wire to be threaded right through for quick visual verification
• 8P8C RJ45 layout for Cat5e UTP cable terminations
• Gold plated contact area inside the connector
• Makrolon PC housing for a sturdy plug body
• Unshielded design suited to standard UTP cabling
• UL 94-V2 flammability rating for the housing material
• Operating temperature range of -40 to 85 degrees C
• IP67 rated connector body
• Water-white color and rectangle shape

Specifications

• Brand: XLEP
• Model number: XL-320
• Type: RJ45
• Number of positions: 8
• Contact material: copper
• Contact area: gold plating
• Housing material: Makrolon PC
• Gender: male
• Shielded: no
• Rated current: 1.5A
• Rated voltage: 120 V
• IP level: IP67
• Shape: rectangle
• Application: audio and video
• Package weight: 0.006 kg

Ideal For

Network installers and DIY users terminating Cat5e UTP patch cords who prefer a pass-through plug that is easy to load and easy to check before crimping.

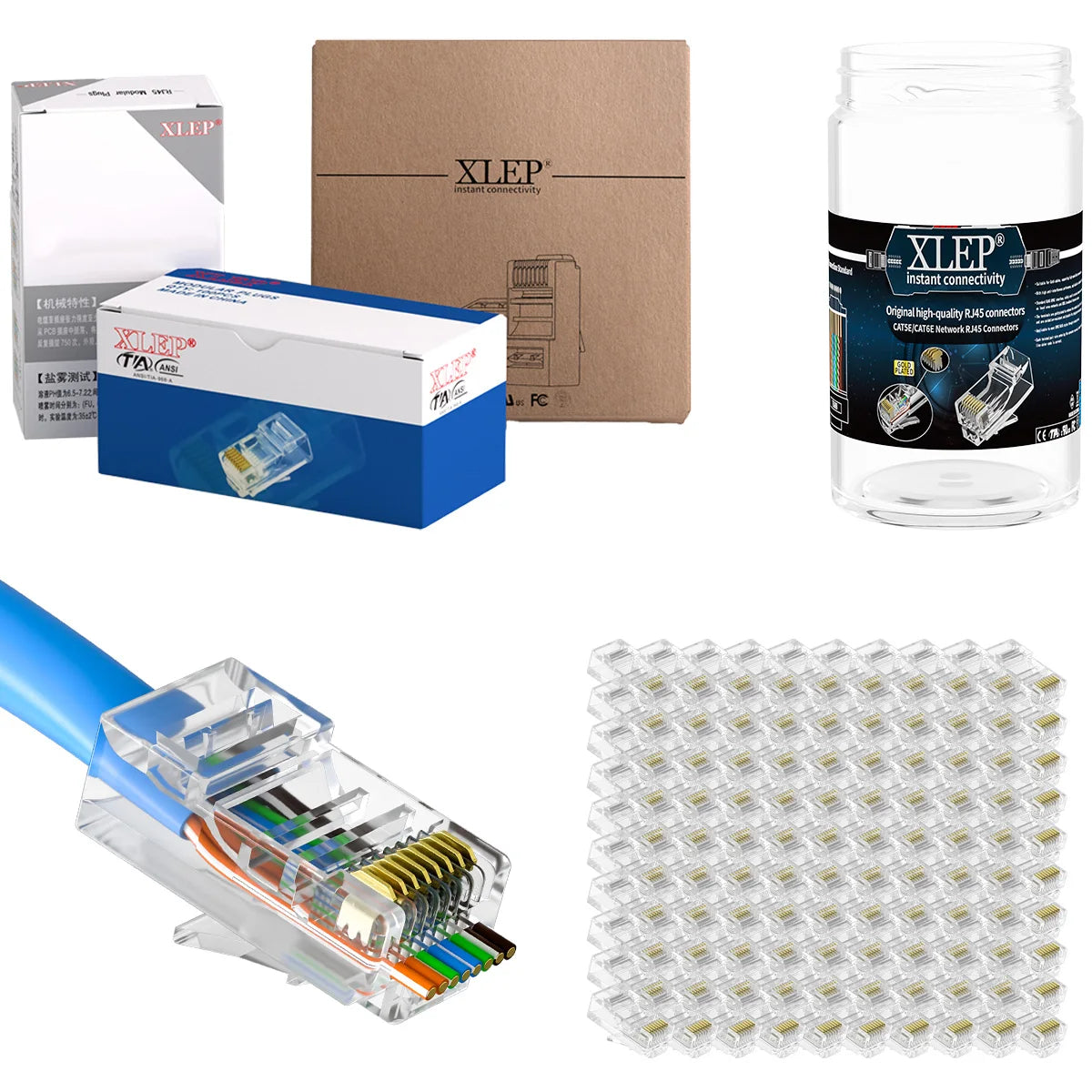

Add this pack of 100 to your cart and enjoy free shipping on orders over $35.
